Architecture

Enterprise Canonical Model (HL7 FHIR `ISO-13972`)«database»Clinical Data RepositoryIM1 Interface«facade»«api managment»Health Information Exchange«enterprise service bus»ICS Integration Engine«api managment»Directory ServicesDirectory Services(National)«adaptor»Patient Care CoordinationEnterprise WorklowNational ServicesInterface«adaptor»«database»Clinical Data Repository(external - Primary Care)«enterprise service bus»Trust Integration Engine (TIE)Organisation Data ServicePersonnel Demographic ServiceDirectory of Services (DoS)eRS Directory ServiceMessage Exchange for Social Care and HealthITK3GP Connect Send DocumentBooking and Referral StandardNHS Business Standards Authoritye-Referral ServiceFHIR MessagingFHIR MessagingFHIR RESTfulFHIR RESTfulHL7 v2 OML/ORU/FHIR Messagingand FHIR Workflow

Domain Design


Enterprise Workflow

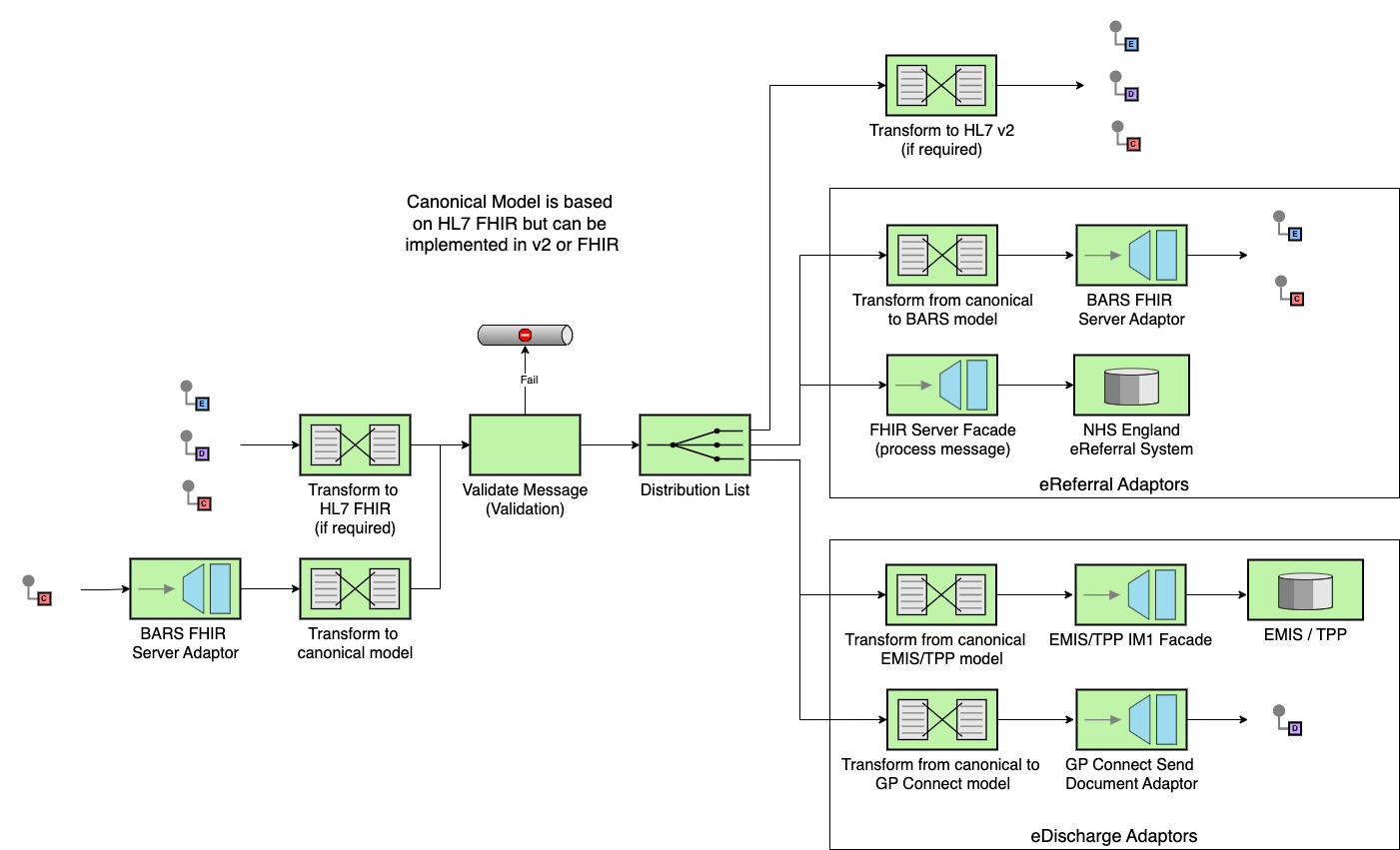

Enterprise Integration - Community and Primary Care

Enterprise Integration - Community and Primary Care

Routing Table

Interaction Direction Sender Role Recipient Method
eReferral Out Pharmacy GP BARS
  Out Private Secondary Care eRS
  In GP, Unscheduled and Emergency Care Other BARS
  In/Out Other Other eReferral (this)
eReport Out Pharmacy GP GP Connect Send Document
  Out Online Consultation Provider GP IM1 (or Ketting XML + MESH)
  Out Other GP IM1 (or Ketting XML + MESH)
  In/Out Other Other eDischarge (this)
