Virtually Healthcare - IHE Patient Care Coordination (PCC)
0.1.1-current - ci-build United Kingdom flag

Virtually Healthcare - IHE Patient Care Coordination (PCC) - Local Development build (v0.1.1-current) built by the FHIR (HL7® FHIR® Standard) Build Tools. See the Directory of published versions

Home

Official URL: https://fhir.virtually.healthcare/ImplementationGuide/fhir.virtually.healthcare Version: 0.1.1-current
Draft as of 2025-06-26 Computable Name: VirtuallyHealthcare_IHEPCC

Patient Care Coordination (PCC)

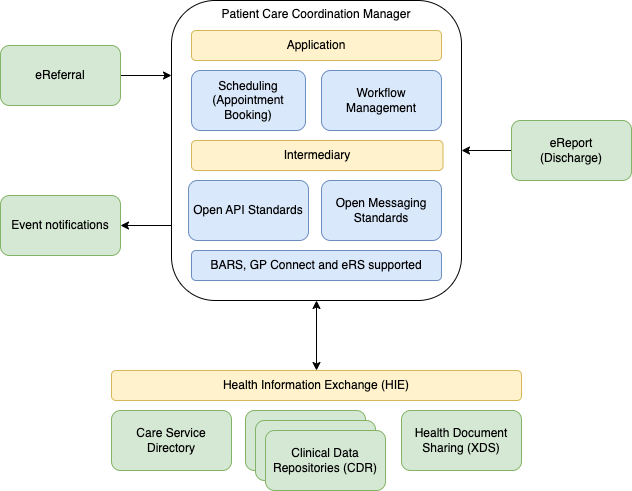

Patient Care Coordination Manager (Community)

Patient Care Coordination Manager (Community)

Initial design

Patient Care CoordinationPatient Care CoordinationOrder PlacerOrder FillerAutomation Managerincluding eRS supportClinical Data Repository (CDR)including Regional Care Record SupportClinical Data Warehouse (CDW)Health Document Sharing (XDS)including National Record Locator suportIntermediaryTraditionalincluding BARS & eRS supportIntermediaryStructured Data CaptureOrder Entry FormStructured Data CaptureDevice Data CapturePatient Referral (Command)Referral Updates (Events)Patient Referral (Command)Referral Updates (Events)Resouces (Events)Discharge Reports (Document)ETLWork Order ManagementReport ManagementResources

IHE PCC Refactor to Clinical Data Repository


Clinical Process

The Patient Care Coordination Manager (Community) is aimed at supporting clinical process in the community. It is aligned with Nursing Process (ADPIE)

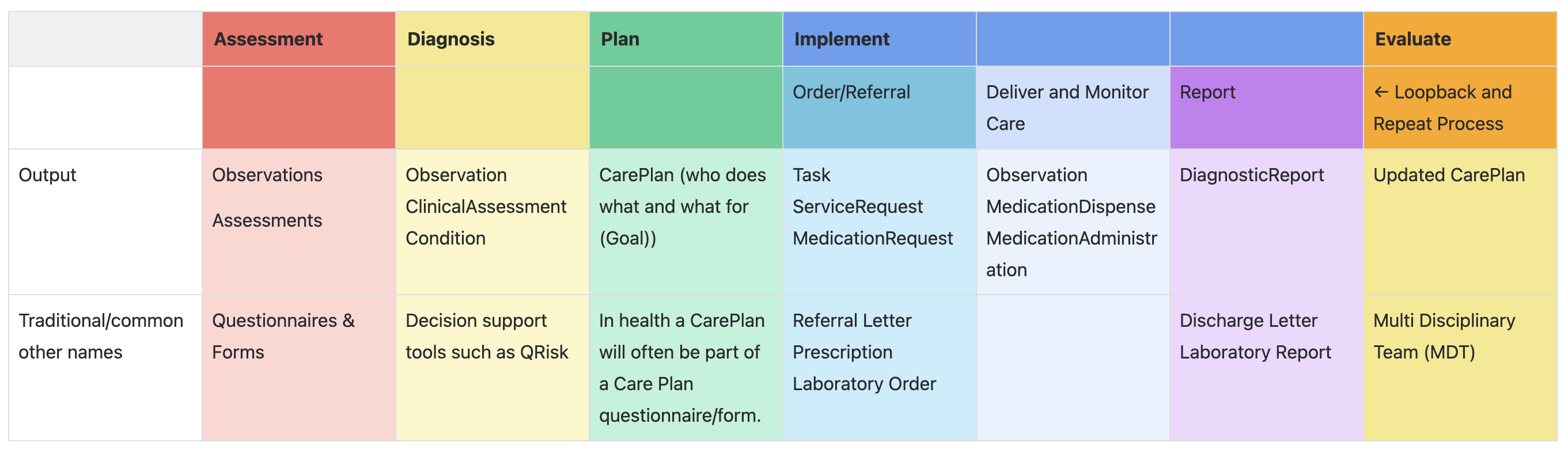

Nursing Process (ADPIE)

Nursing Process (ADPIE)

Standards

This guide documents the canonical data model/domain model we use internally to meet general NHS requirements such as using:

We are also moving towards several international standards such as:

The section on adaptors describes how we have interfaced to external systems, as we internally use a domain model we need to build an Anti-Corruption-Layer to convert external models to our domain model.

SNOMED CT

UK edition of SNOMED (83821000000107)

Dependencies

Package hl7.fhir.uv.extensions.r4#5.2.0

This IG defines the global extensions - the ones defined for everyone. These extensions are always in scope wherever FHIR is being used (built Mon, Feb 10, 2025 21:45+1100+11:00)

Package fhir.r4.ukcore.stu3.currentbuild#0.0.19-pre-release

UK Core FHIR profiles and Assets

Package hl7.fhir.uv.sdc#3.0.0

The SDC specification provides an infrastructure to standardize the capture and expanded use of patient-level data collected within an EHR.
This includes two components:
* Support more sophisticated questionnaire/form use-cases such as those needed for research, oncology, pathology and other clinical domains.
*Support pre-population and auto-population of EHR data into forms/questionnaires for uses outside direct clinical care (patient safety, adverse event reporting, public health reporting, etc.). (built Tue, Mar 8, 2022 18:32+0000+00:00)

Package hl7.fhir.uv.ipa#1.0.0

This IG describes how an application acting on behalf of a patient can access information about the patient from an clinical records system using a FHIR based API. The clinical records system may be supporting a clinical care provider (e.g. a hospital, or a general practitioner), or a health data exchange, including a national health record system. (built Sun, Mar 26, 2023 20:50+0000+00:00)
